Umbrella Head Galvanzied Roofing Nails Sing Shank With Washer
Galvanized roofing nails, also called as clout nails feature disproportionately large flat or umbrella shaped heads and short shaft, sometimes with rubber, plastic or metal washer to prevent water leaking. The diamond points of nails are sharp enough for penetrating the wood without any damages. Meanwhile, the roofing nails are electro or hot dipped galvanized – that is, coated with zinc to avoid rust.
Galvanized Roofing Nails Specification:
- Material: Galvanized, aluminum, copper, stainless steel, etc.
- Head Type: Umbrella, sealed umbrella.
- Shank Type: Twisted, ring veins and smooth types available (optional)
- Finish: Electric galvanized or hot dipped galvanized
- Point: diamond or blunt.
- Diameter: 8–14 gauge.
- Length: 1-3/4″ – 6″.
- Head diameter: 0.55″ – 0.79″.
Galvanized Roffing Nails Detail:
| roofing nail Specification |
| Specification | Length (mm) | Rod diameter(mm) | Head diameter(mm) |
| bwg8*2" | 50.8 | 4.19 | 20 |
| bwg8*2-1/2" | 63.5 | 4.19 | 20 |
| bwg8*3" | 76.2 | 4.19 | 20 |
| bwg9*1-1/2" | 38 | 3.73 | 20 |
| bwg9*2" | 50.8 | 3.73 | 20 |
| bwg9*2-1/2" | 63.5 | 3.73 | 20 |
| bwg9*3" | 76.2 | 3.73 | 20 |
| bwg10*1-3/4" | 44.5 | 3.37 | 20 |
| bwg10*2" | 50.8 | 3.37 | 20 |
| bwg10*2-1/2" | 63.5 | 3.37 | 20 |
Galvanized Roofing Nails Features:
1.Polishing with bright surface.
2.Weather resistant.
3.High durability.
4.Optimum finish.
5.Function specific design.
Galvanized Roofing Nails Applications:
- Connecting wooden parts.
- Fixing asbestos tiles.
- Fixing plastic tiles.
- Reinforcement component in industrial construction.
- Indoor decorations.
Galvanized Roofing Nails Packing:
1.In wooden carton, Blue box inside. 7 x 16 boxes
2.In wooden carton, In 20kg, 30kg, 35kg, 48kg
3.Paper carton of 20kg, 25kg
4.Paper carton: 25kgs/carton/7bls/boxes, 8boxes/carton
5.Gunny bag: 25kg, 50kg
6.According to customer's requirments

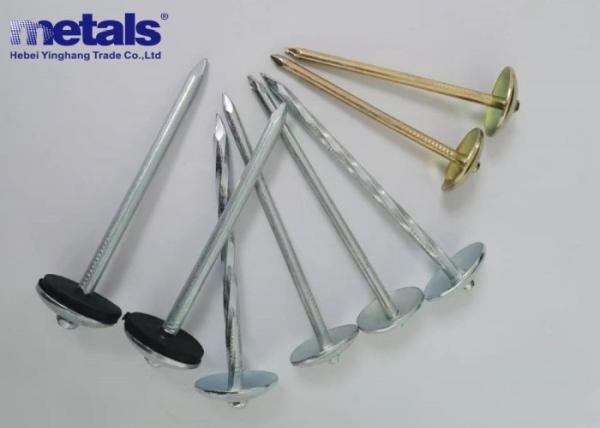

Galvanzied Roofing Nails Picture :
